Text Box: Reference Flow

Wind flow regimes with different initial conditions.

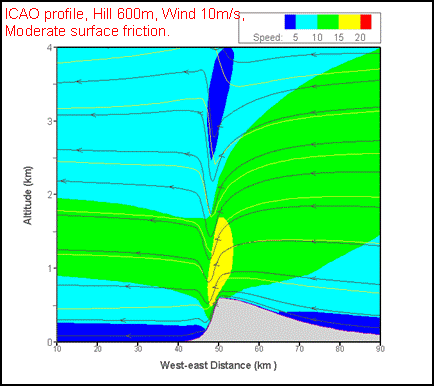

In this section, we use a reference flow, namely

¨   an easterly flow of 10m/s

¨   with an ICAO profile

¨   over a 600m hill and

¨   with moderate friction, z0 = 0.25m.





Note the increase to 15-20m/s in flow just above the upper lee slope and the slower speeds near the surface (mainly due to surface friction) but also a blocking effect on the windward slopes.

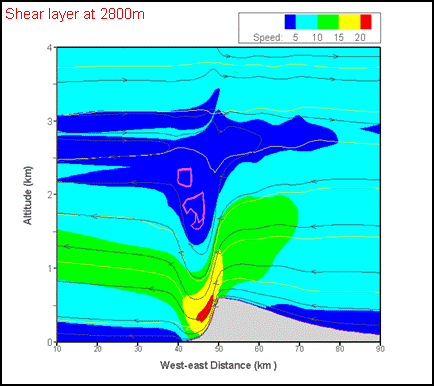

In each of the other panels, one feature alone has been changed, eg Wind shear introduced , or lesser friction, or more stable lapse rate, or an inversion just above mountain top, or a mountain with higher peak, or a mirror image of the topography.
